MRF7S27130HR3 MRF7S27130HSR3

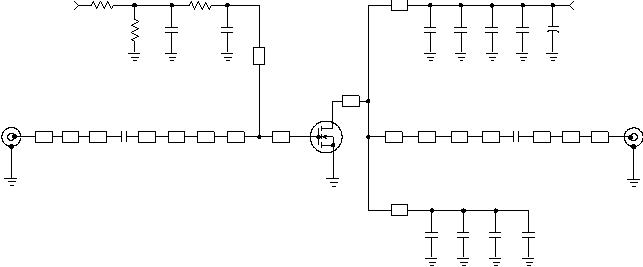

Figure 1. MRF7S27130HR3(HSR3) Test Circuit Schematic
Z11 0.251″
x 0.084″
Microstrip
Z12 0.160″
x 0.162″
Microstrip
Z13 0.566″
x 0.084″
Microstrip
Z14 0.059″
x 0.084″
Microstrip
Z15 0.080″
x 0.123″
Microstrip
Z16 0.583″
x 0.084″
Microstrip
Z17* 0.950″
x 0.100″
Microstrip
Z18, Z19* 0.560″
x 0.100″
Microstrip
PCB Taconic TLX8--0300, 0.030″,
εr
=2.55
* Variable for tuning
Z1 0.320″
x 0.084″
Microstrip
Z2 0.380″
x 0.240″
Microstrip
Z3 0.046″
x 0.084″
Microstrip
Z4 0.273″
x 0.084″
Microstrip
Z5 0.360″
x 0.600″
Microstrip
Z6 0.260″
x 0.394″
Microstrip
Z7 0.145″
x 0.922″
Microstrip
Z8 0.455″
x 0.922″
Microstrip
Z9 0.106″
x 0.716″
Microstrip
Z10 0.413″
x 0.716″
Microstrip
VBIAS
VSUPPLY
RF
Z16
OUTPUT
RF
INPUT
DUT
C2
C3
R1
Z1
Z2
Z3
Z4
C1
Z10
Z5
R2
Z17
Z8
Z11
Z12
Z13
Z14
Z15
Z6
C13
Z9
Z18
C4
C7
C8
C12
Z19
C5
C11
C9
+
R3
Z7
C6
C10
Table 5. MRF7S27130HR3(HSR3) Test Circuit Component Designations and Values
Part
Description
Part Number
Manufacturer
C1
2 pF Chip Capacitor
ATC100B2R0BT500XT
ATC
C2, C6, C7, C8, C9, C10, C11
10
μF, 50 V Chip Capacitors
C5750X5R1H106M
TDK
C3
3 pF Chip Capacitor
ATC100B3R0BT500XT
ATC
C4, C5
3.6 pF Chip Capacitors
ATC100B3R6BT500XT
ATC
C12
470
μF, 63 V Electrolytic Capacitor, Radial
EKME630ELL471MK255
Multicomp
C13
5.6 pF Chip Capacitor
ATC100B5R6BT500XT
ATC
R1, R2
2K?, 1/4 W Chip Resistors
CRCW12062001FKEA
Vishay
R3
10
?, 1/4 W Chip Resistor
CRCW120610R1FKEA
Vishay
